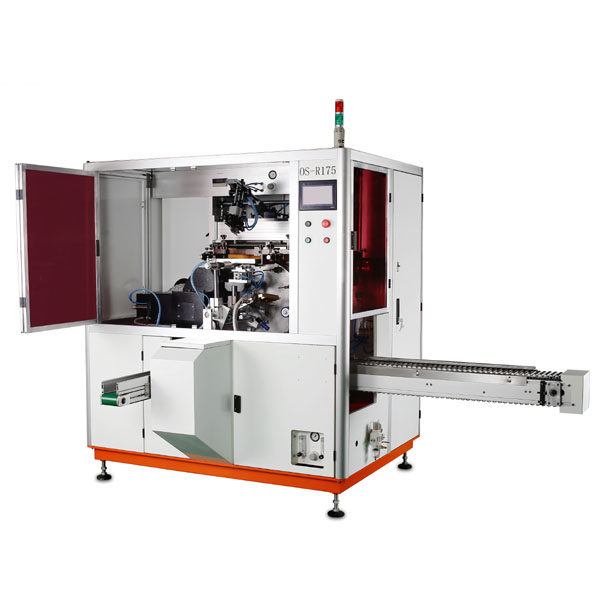

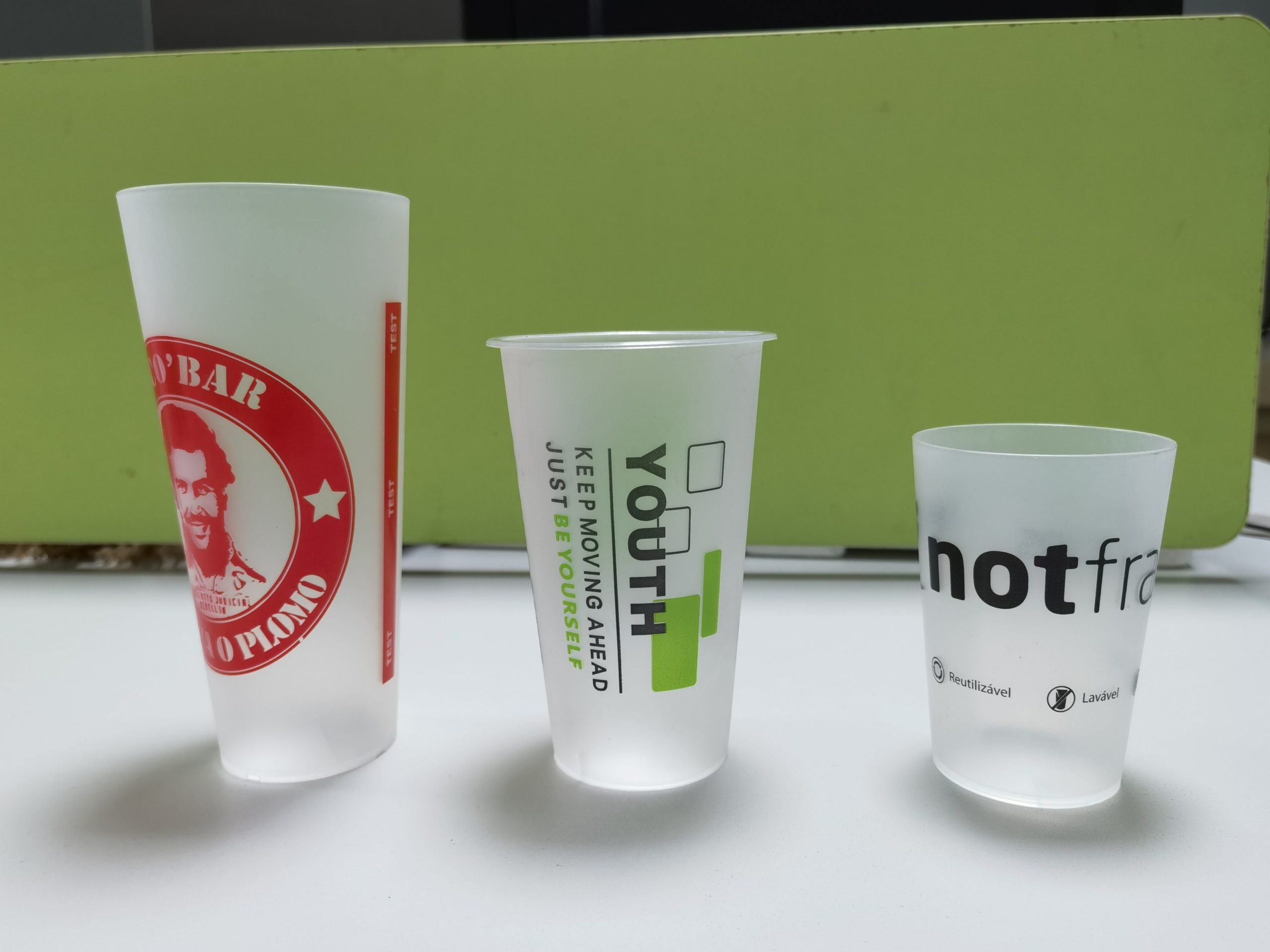

The AP-120 is 1 color automatic UV screen printer that is suitble for screen printing on flexible or rigid plastic tubes, plastic jars and lids (banding), medical vials & syringes and other cylinders up to 75mm in diameter.
The AP-120 UV cured screen printing machine offers increased productivity over any semi-automatic solutions and this system holds unrivalled value for the money.
The AP-120 is driven by a 12 station vertically mounted rotary indexing table that is equipped with a high-end European MOTOVARIO brand (Italian) main drive motor.

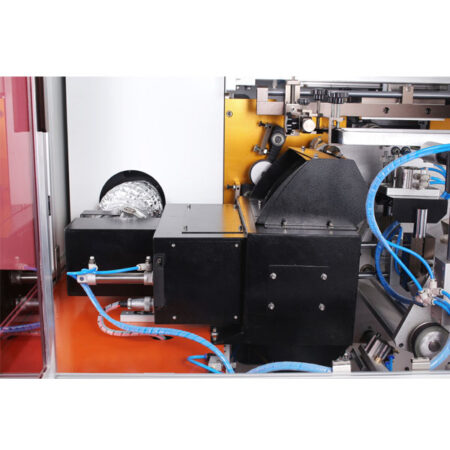

The AP-120 automatic screen printer is also equipped with intelligent UV curing unit which produces high intensity (3KW) curing power utilizing a mercury UV bulb.

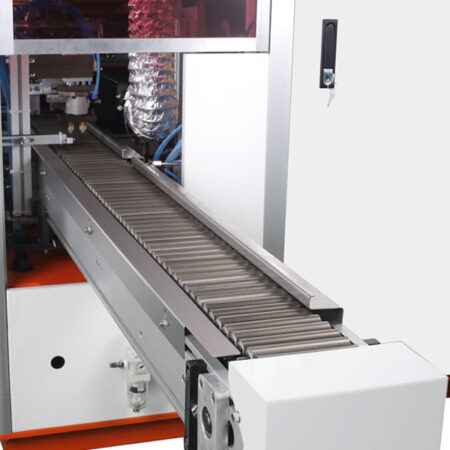

The AP-120 is equipped with infeed belt for automatic feeding of parts onto the mandrels with a mechanical pusher-arm and the system also includes:

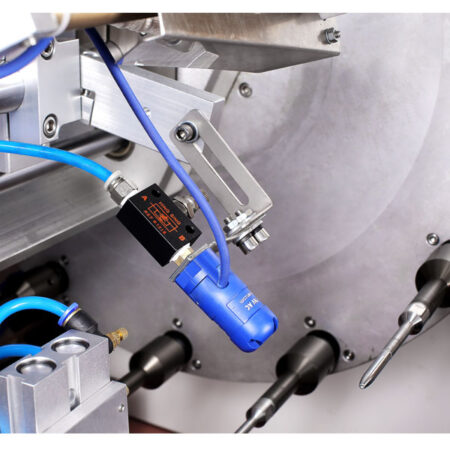

1) SIMCO de-ionizing station ensure the products without dust before screen print
2) Flame pre-treatment station
3) Keyence brand optical re-registration system and magnetic motor for alignment of multi-passes with precise color to color alignment

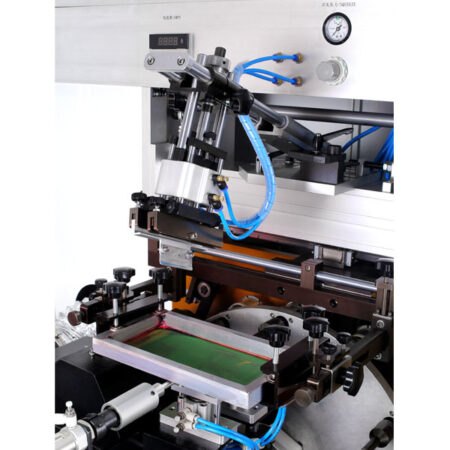

4) Mechanical indexed screen print station
5) Intelligent UV curing system and LED UV system available to install on

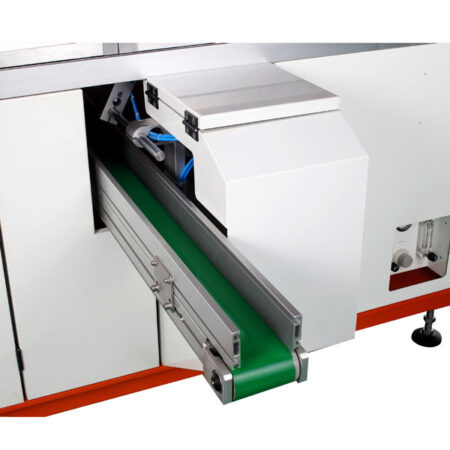

6) Automatic eject station onto an outfeed conveyor
|Print product size (DiameterxLength):||Ø10mm-Ø75mm, L: 20mm-230mm|
|Max. print area:||236x170mm|
|Max. printing speed:||60-80 pcs/min|
|Registration tolerance:||+/- 0.2|
|Control system:||OMRON PLC & Touch Screen|
|Deionizing device:||1 unit|
|Flame treating system:||1 unit|
|Print head:||1 unit|
|UV system:||1 unit intelligent UV system|
|UV lamp power:||3.6 KW|
|Main Motor:||ITALY MOTOVARIO|
|Pneumatic parts:||Japan SMC|
|Photoelectric Sensor:||Japan Keyence|
|Frequency Converter:||Japan OMRON|
|Electrical Supply:||380V/480V 3phase 50Hz/60Hz|
|Air requirement:||6-8 bar|
|Power consumption:||4.5 KW|
|Machine Dimension (LxWxH):||1500x1180x1900mm|
