Electric Flat Screen Printing Machine

AP series flat screen printing machine is a flatbed screen printer with electric motor driven frame up/down and print head left/right, controlled by programmable PLC and touch screen. This flat bed screen printing press widely used in industrial product printing like transfer paper/decal printing, membrane switches, automobile dash board, etc. glass printing, graphic printing, paper sheet printing, etc.

This series machine have different models base on print size, like 300x500mm, 400x600mm, 600x900mm, 700x1200mm, and even bigger sizes. The machine with a X/Y/R position adjustment worktable, can be with vacuum table or T-slot table.

Electric driven machine will be more stable and accurate than pneumatic driven type. Our flat screen printer have a print tolerance of small than 0.04mm. Famous brand motor and controller make the machine work stable.

Inquiry Price!
Category:

Introduction:

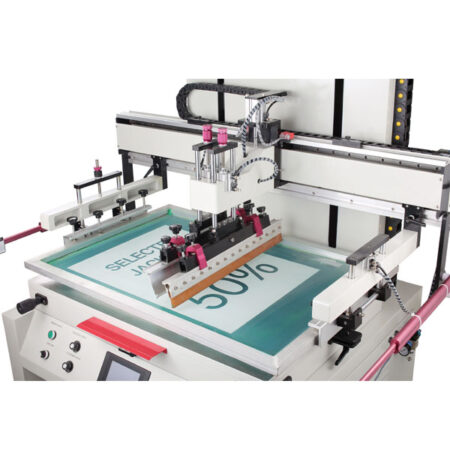

AP Series flat / flatbed screen printing presses features two AC motors to control both the vertical and horizontal motions. The straight-up and down in the vertical plane, keeping the ink right in the “print zone”. Furthermore, the flat vertical lifting method allows the operator to easily load and unload sheets or parts with the added advantage of being able to easily view and inspect the printed parts/sheets throughout the run.
AP Series flat screen printing machines are well suited for screen printing small to big-sized graphic panels, signage, membrane switches, overlays and transfer sheets.
These screen print machines are also well suited for printing onto industrial flat goods such as stamped metal panels, powder coated materials, injection molded parts and much more.



Features:

  • dual aixs AC motor driven horizontal and vertical working

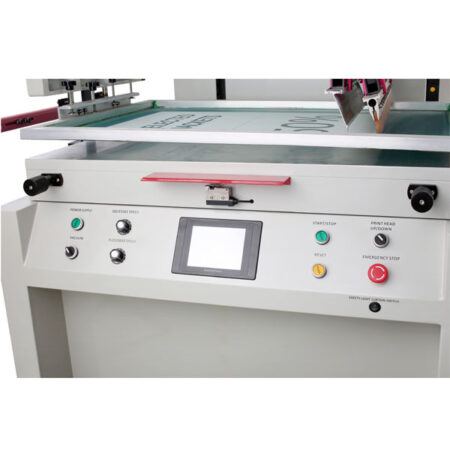

  • brand PLC with touch screen controlled, programmable and simple operation
  • vertical head lift with height adjustment

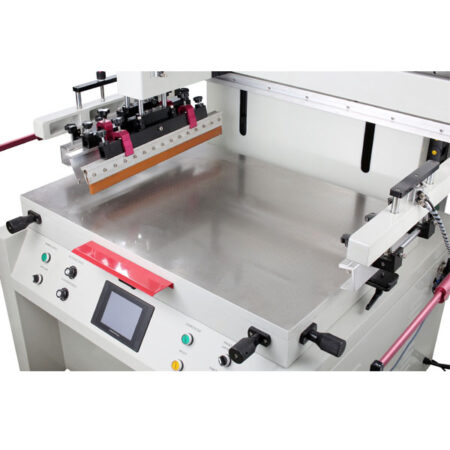

  • X/Y/R positioning worktable, can with or without vacuum table
  • squeegee angle and calibrated height adjustment
  • floor levelers & casters, Foot switch controlled
  • with E-stop button and safety light curtain
  • stable and durable working condition



Specifications:

ModelAP-3050VAP-4060VAP-5070VAP-6090VAP-70120V
Frame up/down stroke150mm200mm200mm200mm200mm
Print stroke(left&right)550mm700mm800mm1000mm1300mm
Max print area300x500mm400x600mm500x700mm600x900mm700x1200mm
Vacuum table size300x500mm400x600mm500x700mm600x900mm700x1200mm
Working table size350x600mm500x700mm600x800mm700x1000mm800x1300mm
Max frame size500x830mm600x9300mm700x1130mm800x13000mm1000x14500mm
Screen frame thickness50.8mm
Squeegee pressure2-4 bar
Max print speed1,200 cycles/hr800 cycles/hr800 cycles/hr800 cycles/hr600 cycles/hr
Electric source110/220/230V 50/60Hz110/220/230V 50/60Hz110/220/230V 50/60Hz380V 50/60Hz380V 50/60Hz
Machine weight190kg320kg380kg660kg680kg
Machine dimension800x1050x1550mm1150x1000x1700mm1100x1300x1650mm1350x1350x1700mm1450x1650x1700mm
