Multicolor Semi Automatic Round Bottle Screen Printing Machine

AP-400S is our round screen printing machine special designed for cylindrical objects, which do not have registration lug, to do multi colors printing. It use the optical sensor to read the printed dot as the registration mark to do color registration.

This bottle screen printing machine features servo driven printing and motor driven up/down stroke, programmable PLC with touch screen controlled all the movements keep the machine fast and stable printing.

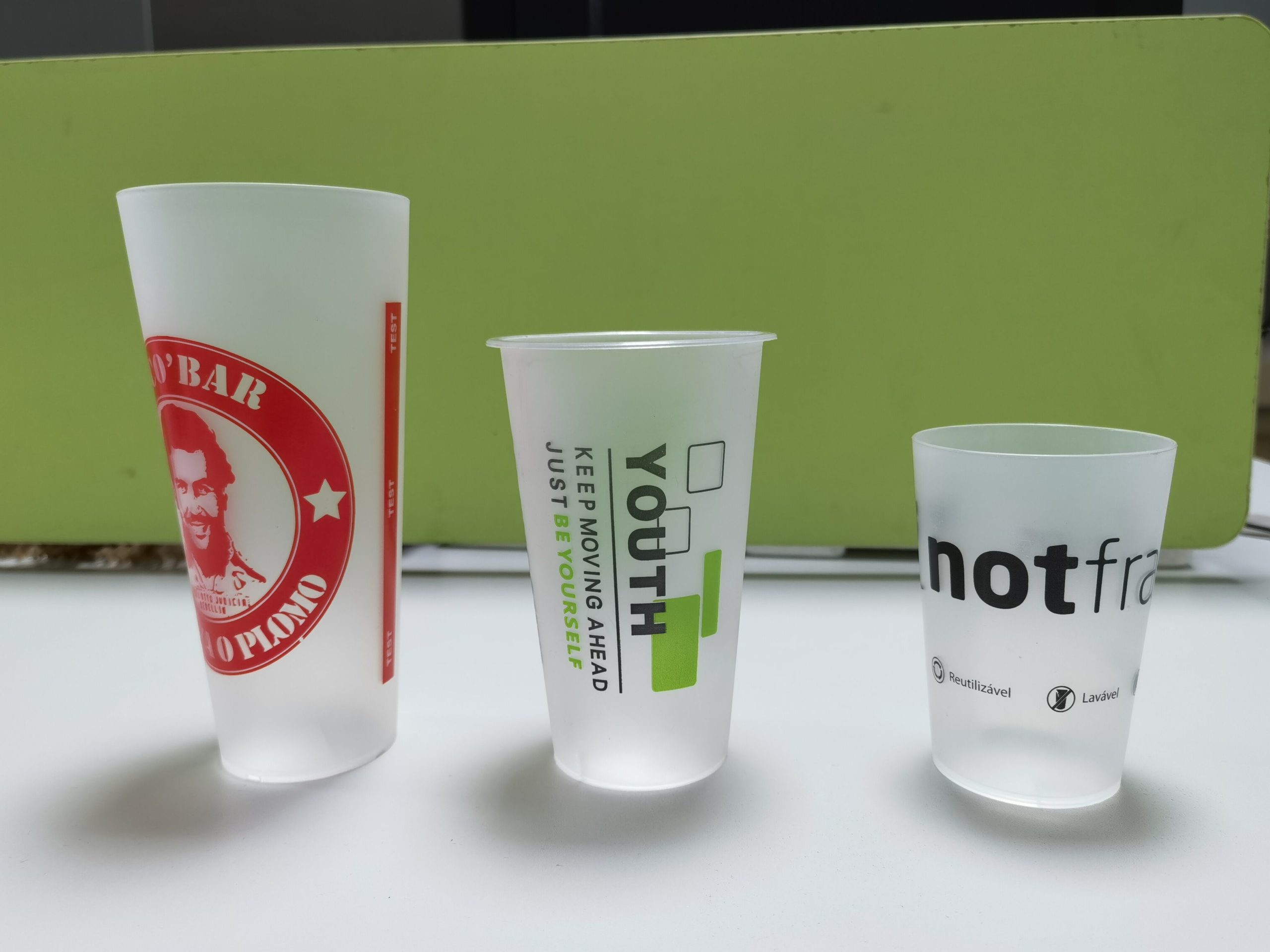

The AP-400S can print max diameter 110mm, max print area can reach L350xH220mm. It can be most plastic and metal bottles and containers printing, like sport water bottle, stainless steel bottle, plastic bottle, oil filter, soft tube, cups, etc.

Category: Cylindrical Screen Printing Machine

Description
Reviews (0)

Description:

AP-400S screen printing machine specially designed for printing round objects without registration lug (anchor point), such as plastic bottle, sport water bottle, stainless steel container, oil filter, soft tube. etc.

As the bottles or containers do not have registration lug, this AP-400S machine use the optical sensor to read the dot which printed on the first color, as the registraion point. Then use this dot to do multi colors registration.

It can print max bottle diamter to 110mm, easily to changeover for different size bottles on the programmble touch screen. Servo driven rotation and printing stroke, AC motor driven screen frame up/down make the machine operate stably and print accurately.

Features:

Brand servo driven rotation and printing stroke, AC motor driven up/down stroke.
Programmble PLC and touch screen controlled all the movements.
Can do multi colors printing, suits for different kinds of bottle and container printing
Germany brand optical sensor, high accurtate reading marks.
Quik and simple tooling changeover
Floor levelers & casters, Foot switch controlled.
Squeegee tilt, skew, and height adjustable

Specifications:

Model NO.:	AP-400S
Print shape	Round
Up & Down stroke Driven:	Electric motor
Print stroke Driven:	Servo motor
Re-registration system:	Servo motor & Optical sensor
Control system:	Brand PLC & Touch Screen
Print round diameter:	Ø7mm(0.276″)-Ø110mm (4.33″)
Maximun print area:	L350mm x H220 mm
Maximum screen frame size:	800 x 400mm (31.50″ x 15.74″)
Printing cycle speed:	2000 cycles/hour
Registration tolerance:	+/- 0.3-0.5 mm (except products tolerance)
Electrical supply:	110V/220V 50-60Hz 2.5KW
Air requirement:	5-7 bar
Machine dimension:	L900 x W800 x H1450 mm
Weight:	200 kg (440.92 lbs)
